Rehabilitation of Tooth 24 with Neodent Universal Abutment 3.3x4mm

Introduction

This clinical case involved the rehabilitation of element 24 with a prosthetic crown on a Neodent Universal Abutment 3.3x4mm. The patient presented with thick and swollen gingiva post-surgery, requiring extra care in capturing and cementing the crown to achieve both aesthetic and functional success.

Materials and Methods

Prosthetic Solution: Neodent Universal Abutment 3.3x4mm
Patient Record: Intraoral scanning
Planning Software: Exocad

Procedures

1. First Scanning Appointment

An initial intraoral scan was performed to capture the mandible, maxilla, and the positioned scanbody, documenting the implant position. However, the presence of swollen gingiva necessitated a second scan for improved accuracy.

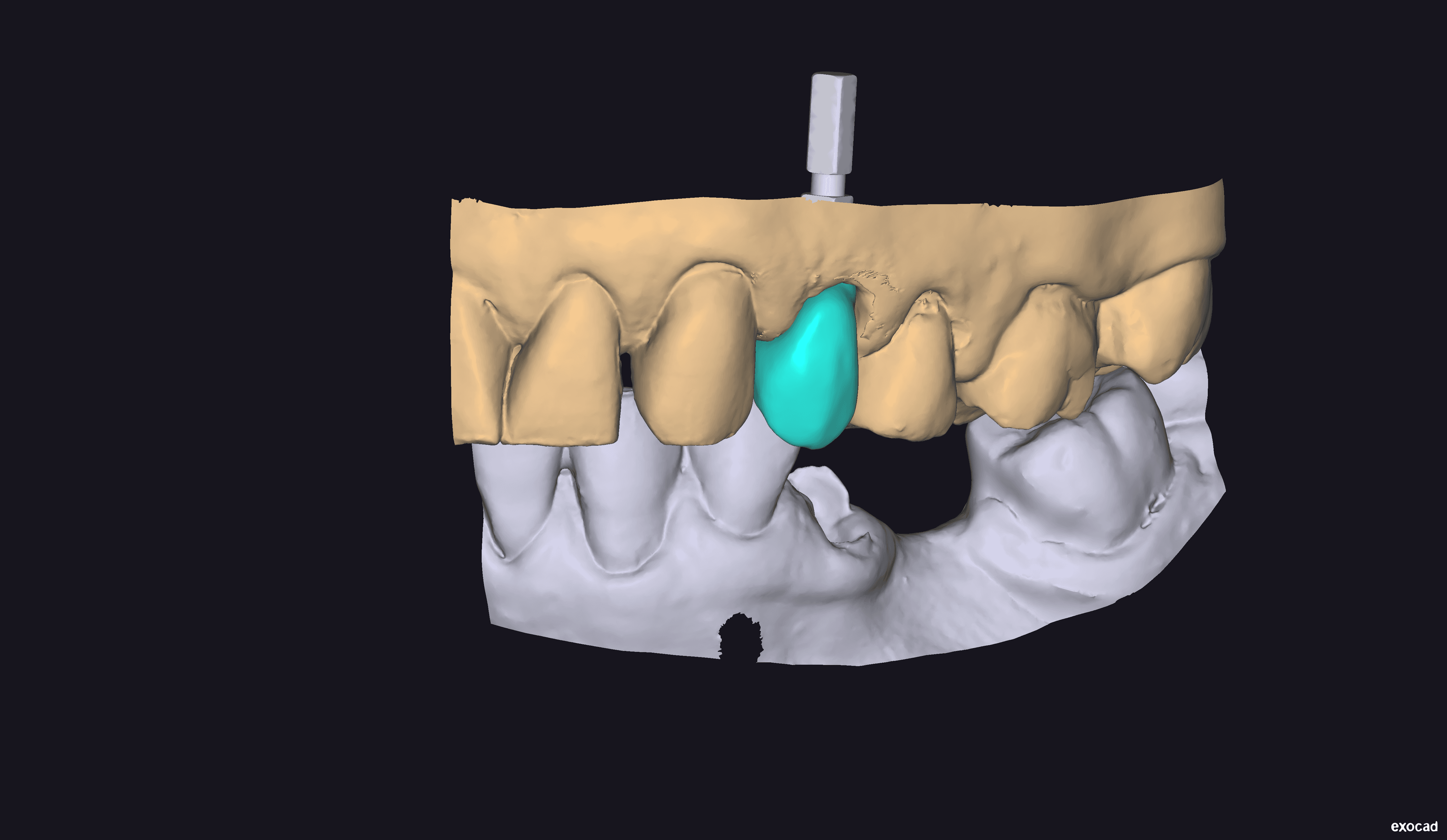

Initial scan showing implant position and swollen gingiva

2. Second Scanning Appointment

A follow-up appointment was conducted to record a more precise scan, ensuring the gingival tissue had settled. This scan was essential for achieving a proper fit for the prosthetic crown.

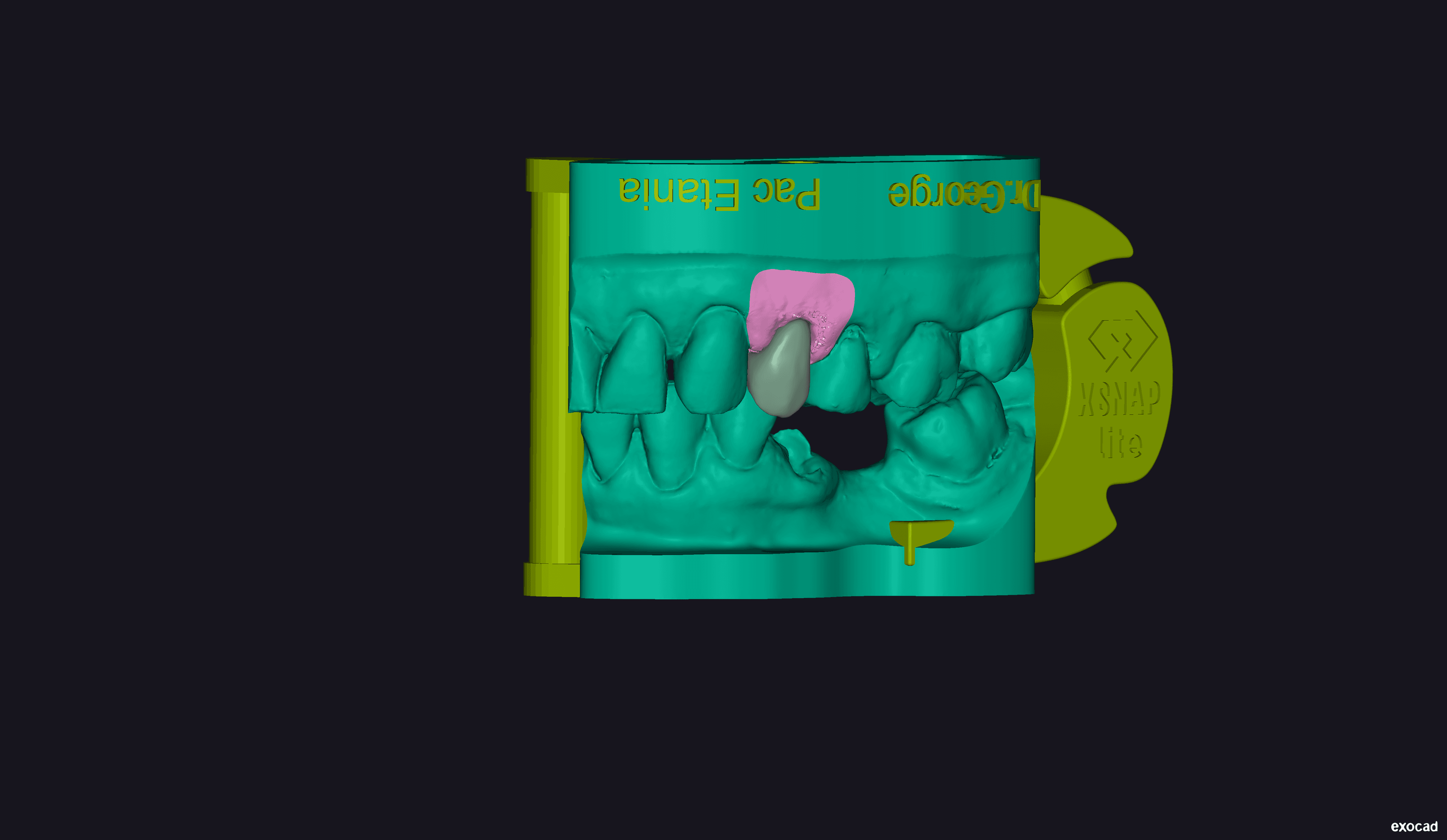

Second scan showing improved gingival condition and implant positioning

3. Use of the Dental Copy Tool in Exocad

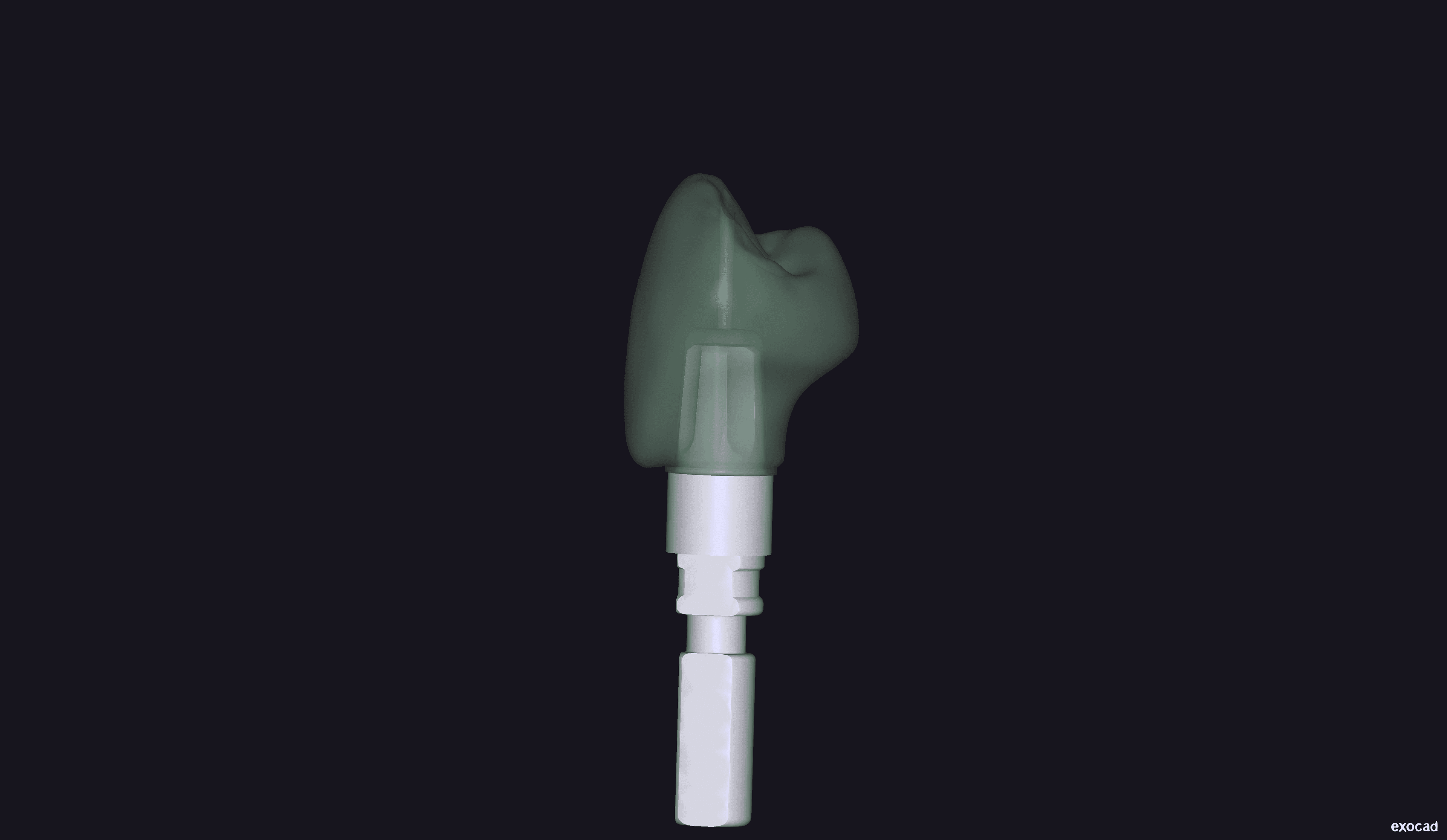

The Exocad software’s dental copy tool was utilized to reuse the anatomy approved by the dentist from the second scan. This step maintained consistent and high-quality results in crown planning.

4. Crown Cementation

The finalized crown was cemented directly in the patient's mouth, ensuring a precise fit. This process provided the patient with an effective and comfortable dental restoration.

Cemented crown in patient's mouth showing final restoration

This case highlights the importance of accurate scanning and careful planning in post-surgical cases to deliver reliable and aesthetically pleasing outcomes.
